The Simple Computer project consists of a Processor and a Memory. The
Memory contains two arrays to hold instructions and data (instr_mem
and data_mem), while the Processor contains a single array forming the
programmable registers (main_reg). The Processor instruction set,
defined in s-comp.edl, contains simple load/store and
register-register arithmetic instructions together with a Jump
Immediate, a Jump Register and a Branch instruction. The outcome of
the branch instruction is determined by a Condition Code (CC) register
set according to the result of one of six possible comparisons between
two register values. There is also a No Operation (NOP) instruction
and a STOP instruction.

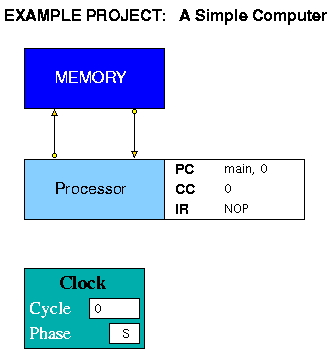

Along with the Condition Code register, the Program Counter (PC) and
Instruction Register (IR) are displayed in the Project View panel.
The Program Counter has two fields, a label (main in the
figure) and an offset (0 in the figure), because the instruction
array in the Memory is declared using the ARRAYI construct.
The project is made up of the files listed below. These files illustrate
many of the features of HASE described in the User Guide.
Definition files (HASE-III)
Entity Behaviour files
Global Function files
Register/Memory content files
